T2L Tutorial Q4

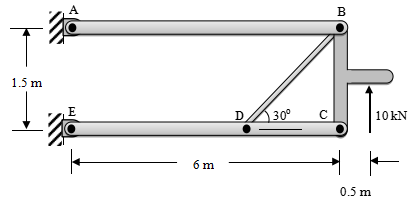

(a) Calculate the tension Tin the rod BD and the forces that act on each member of the pin-connected structure in the figure below.
(b)The pin D of the structure in part (a) may be placed anywhere along member CE. Determine the “best” location for D and give reasons for your choice.
Hint: Determine the forces in member AB and the forces that act on pins C, D and E. Tabulate or plot these forces as a function of distance x from pin E to D and choose a location for D.
