Water, Sanitary and Gas Services: Assignment, Singapore

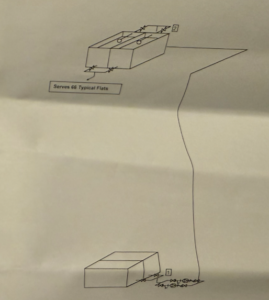

For the diagram shown, determine

(a) capacity of high level storage cistern

(b) capacity of low level storage cistern

(c) pipe diameter of riser

(d) capacity, head and water power required by pump.

(e) make a sketch of the (1) high level storage cistern and (ii) low level storage cistern using panels either of size 1.0mx 1.0m or 1.0 m and 1.5 m..

(f) using the internet or catalogues, select a suitable pump size from the pump selection charts. Submit the pump selection chart

The potential height difference between 1 and 2 is 12.0 m Pipe length between 1 and 2 is 18 om.
